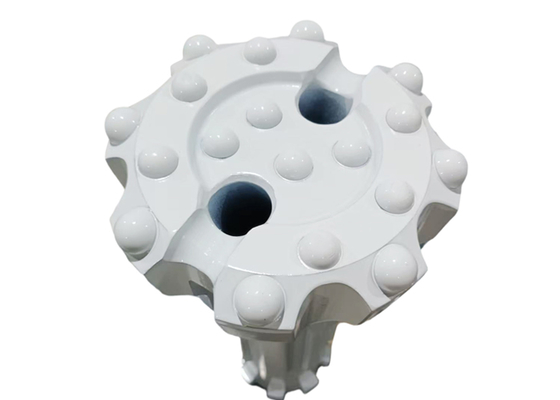

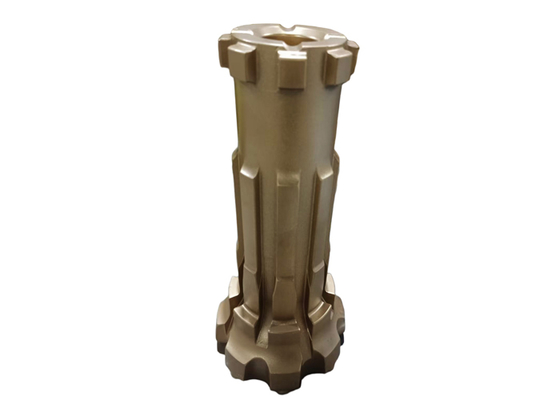

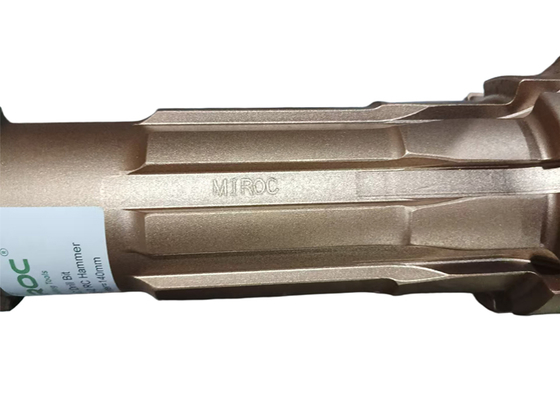

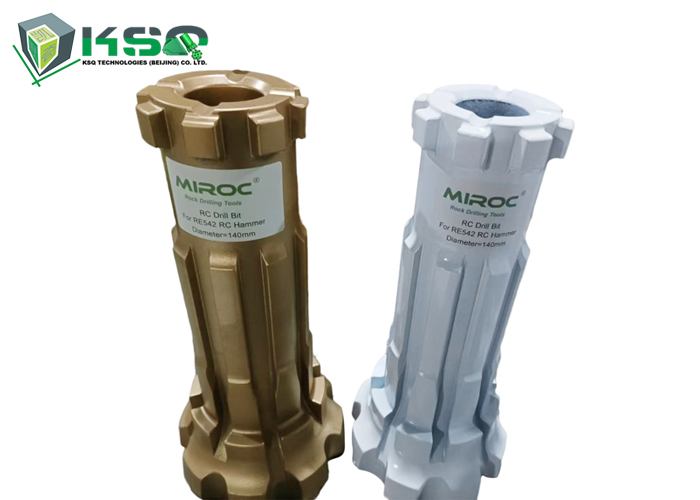

Reverse Circulation DTH Drilling Tools RE542 RC Hammer Bit

Reverse Circulation DTH Drilling Tools RE542 RC Hammer Bit

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: MIROC
Chứng nhận: ISO
Số mô hình: RE542
Thanh toán:
Số lượng đặt hàng tối thiểu: 1
Thời gian giao hàng: 20-30
Khả năng cung cấp: 3000
Tiếp xúc
Chi tiết sản phẩm
Ứng dụng: Khoan lỗ trong mỏ, thủy văn và nước giếng, Sự hình thành: Sự hình thành sỏi phức tạp
Chất lượng: Tốt nhất Số mô hình: RE004, RE542, PR52, PR54R
Kiểu: Dụng cụ khoan RC sử dụng: Khai thác mỏ, Khảo sát
Làm nổi bật:

Reverse Circulation DTH hammer bit

,

RC drilling tools RE542

,

Rock drilling hammer bit

Product Description

Reverse circulation hammers and bits are used in exploration and grade control applications to obtain an accurate sample with no risk of contamination. KSQ offers a range of reverse circulation hammers and drill bits that provide outstanding performance coupled with reliability and simplicity.



Reverse circulation drilling (RC) is a drilling technique that allows samples to be retrieved with minimal contamination. Drilling is typically done using a down-the-hole, tricone, or triblade bit. The samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall. This quick execution technique is usually performed within a diameter of 150 mm and a depth that varies between 50 and 200 meters.



Our Advantages

1.Sturdiness
2.Samples extracted are reliable and free of contaminants;
3.The method is timely and cost-efficient
4.Long life
5.Reverse circulation drilling is simple and easy.
6.High penetration rates, and it has minimal environmental impact



Available Sizes
  • 3" RC Bits: diameter (86mm-102mm), shank (RE531)
  • 4" RC Bits: diameter (114mm-127mm), shank (RE004, RE004R)
  • 4.5" RC Bits: diameter (121mm-133mm), shank (RE542, RE543)
  • 5" RC Bits: diameter (113mm-146mm), shank (RE545, PR40)
  • 5.5" RC Bits: diameter (133-146mm), shank (RE547, PR52, PR54, RC45, AD670)
